Expansion Mandrel Pull Back (EMP)

FlexGrip    12-Jan-2021
Total Views |
  • Designed for ID Clamping in CNC turning centres / Turn-mill centres and other rotating part machine tools with Power chucking arrangement.
  • Vulcanized Clamping Sleeve closes in radial as well as axial direction and pulls the part against end stop.
  • Available in Size EMP25E, EMP50E, EMP63E, EMP100S, EMP130S
  • High rigidity due to true straight line / parallel clamping. Run out accuracies can be achieved within 0.010mm
  • Also available for stationary part applications with in-built hydraulic actuator.

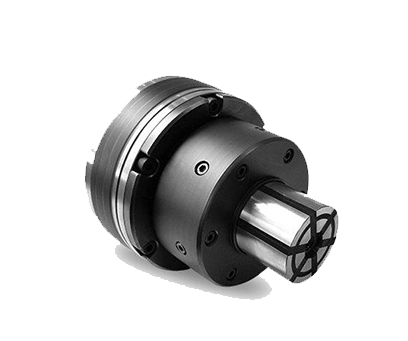

EMP_1  H x W: 0

Design _1  H x


Pull Back Chart _1 &
#Technical specs are subject to change without notice due to continual improvement.

NOTES:

1.L4,L5 denote Drawtube In & Out position.
2.* Flat Nose G140, G110 or other special executions for Spindle Mounting are available on request.
3.Drawbar / Drawtube not in standard scope of supply.
